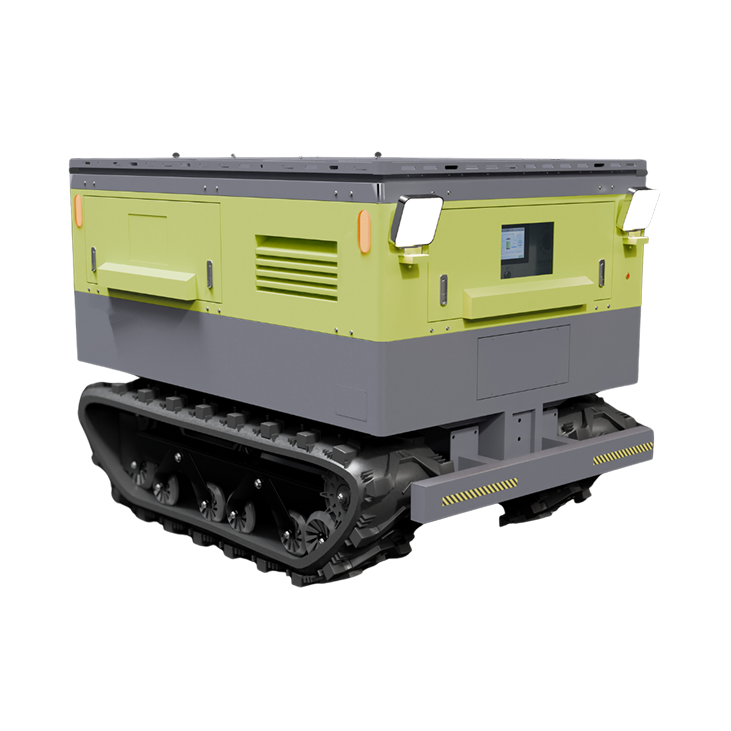

Introducing the TerraVolt All-Terrain Power Tank

18kVA Inverter + 94kWh Battery

TerraVolt is a cutting-edge and versatile power solution designed for maximum convenience and utility. Featuring a rugged all-terrain drivetrain and a wireless remote control, the TerraVolt can be effortlessly driven to any location, ensuring critical power is available exactly where it’s needed. Boasting a 94 kWh battery capacity and a 18 kVA inverter, this multi-utility power station is prepared to delivery energy in any situation. It can be recharged using grid, solar, or a diesel generator and offers EV charging capability, making it the ultimate power source in all weather and terrain conditions.

Register your interest

Explore the TerraVolt All-Terrain Power Tank

All-terrain
mobility

kWH capacity with
18 kVA inverter

Easy rapid
deployment

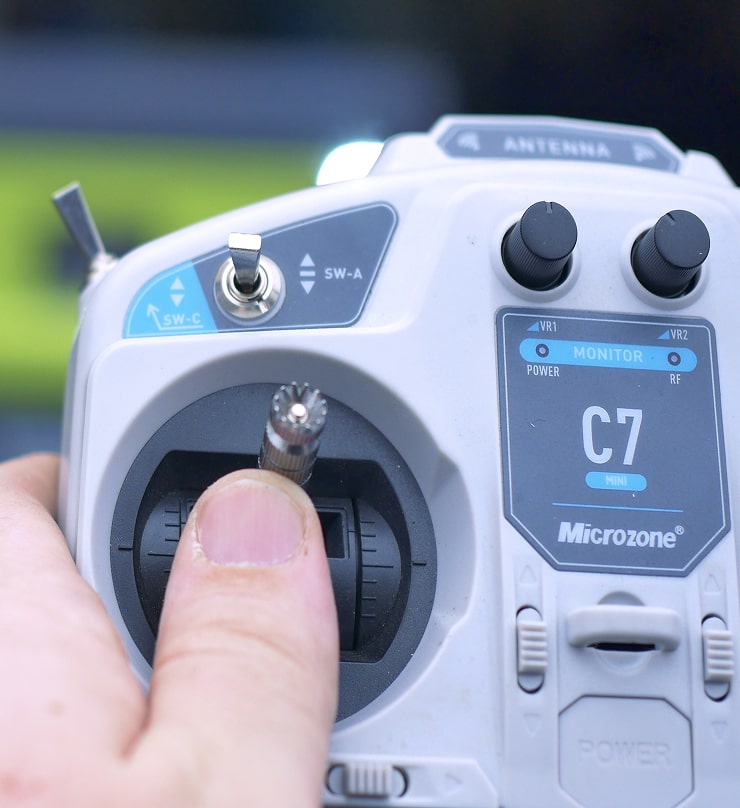

Remote control
capability

Base System Specifications

Parameters

Note: Bulk, Absorption, Float, and Equalize are not applicable to lithium batteries but are included here with the correct numbers to input into your charge controller as they are our most commonly requested parameters.

Charge Voltage: 87.6V

Bulk Voltage: Pre-Programed (Not Applicable to Lithium Batteries)

Absorption Voltage: Pre-Programed (Not Applicable to Lithium Batteries)

Absorption Time: 0 Minutes (Not Applicable to Lithium Batteries)

Float Voltage: Pre-Programed (Not Applicable to Lithium Batteries)

Fire Extinguishers: Yes

Low Voltage Cutoff: 67.2V

High Voltage Cutoff: 87.6V

Suggested Inverter Low Voltage Setting: Pre-Programed

Generator Charging Max Current: 25A AC

5kW Generator Max Current: 15A AC

10KW Generator Max Current: 25A AC

Fan Noise: 58-62 dbA

Battery Specs

MAX PV Charge Current: 2 * 80A (2 * 7kW) kWh Capacity: 94 kWh

Amp Hours: 1224 Ah @ 72V

Operating DC Voltage Range: 67.2V – 87.6V

Cell Configuration: 24S 4P

Inverter Specs

AC Input Voltage: 160-260V (UPS Mode)

AC Output Voltage: 110V/220V (±10%)

Continuous Power: 18 kVA

MAX AC Charge Current: 50A @ 240V

Output Frequency: 50Hz/60Hz (±0.5Hz)

Waveform: Pure-Sine Wave

Efficiency: 95%

Max DC Charge Current: 160A

PV Input Voltage Range: 90V – 230V DC

Dimensions

Weight: 1,270 kg

Width: 110 cm

Length: 158 cm

Height: 113.5 cm

Hitch Length: 20cm

Capacity
  • 1,587.57 kg (Towing)
  • 226.80 kg (Carrying)
Mobility
  • Dual 2kW Electric Motor
  • Gear Ratio – 1:30
  • Wireless Remote Range (100ft)
  • All-Terrain Track

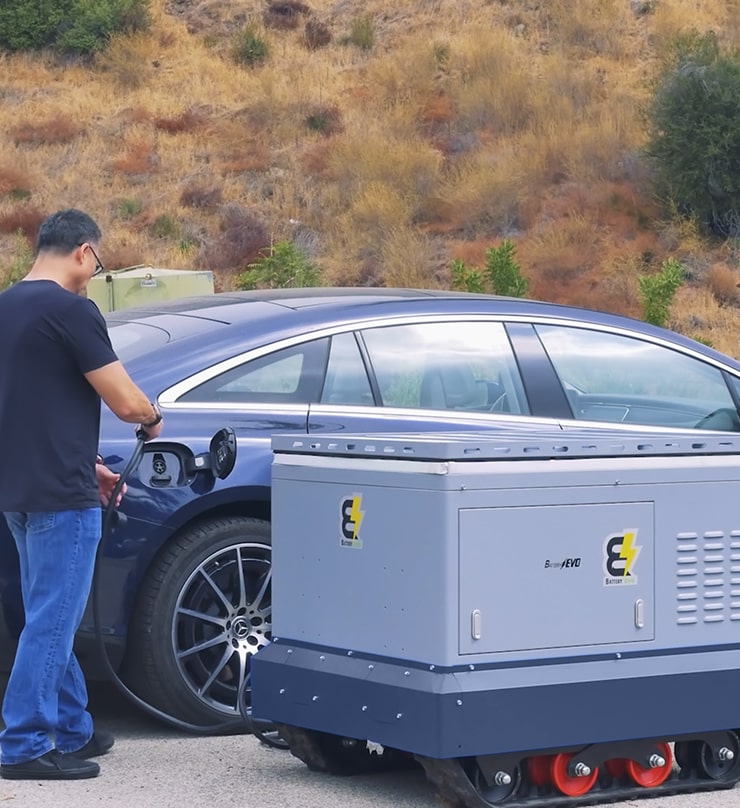

EV Charger
  • 48A@220V,11KW
  • CCS1
  • Level 3 (DC Fast Charging)
AU Model
  • Round Three-Pin Outlet
  • 32A IEC 60309 Style
  • Flat Universal Outlet
  • 15 Amps
  • Large Input Power Connector
  • 32A Isolator Switch
  • Round Three-Pin Outlet
  • 16A IEC 60309 Style
